17 BBB

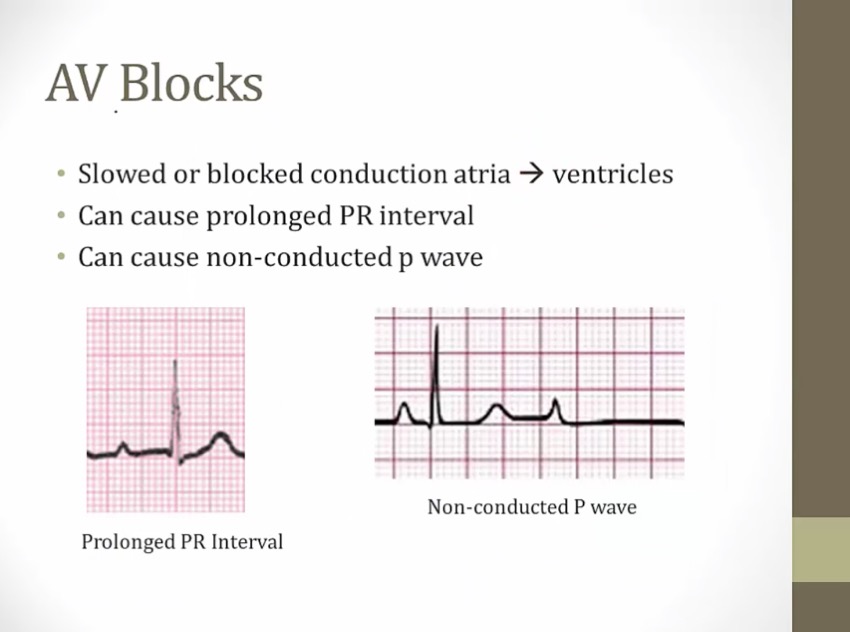

Overview

_..

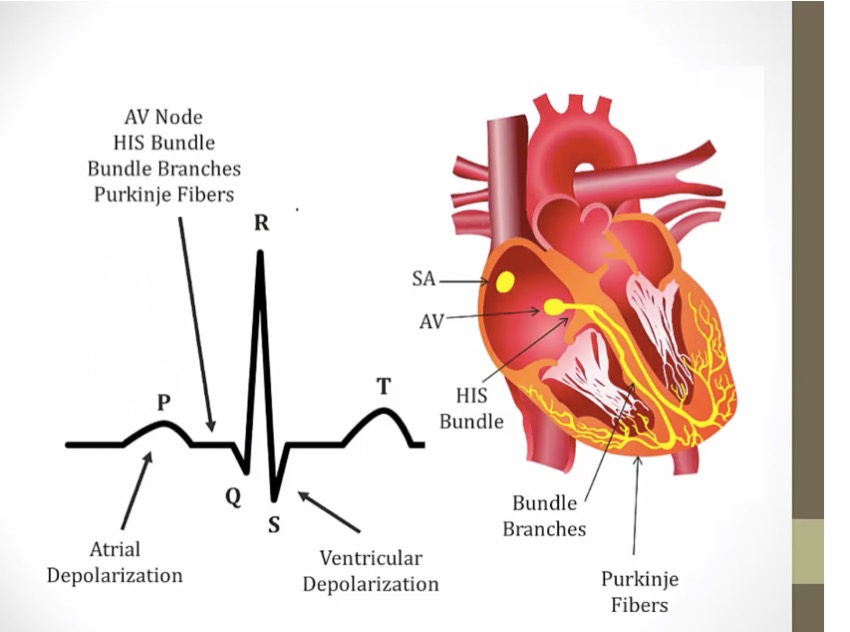

• AP can only go from SA to ventricle from AV node

• PR: electrical activity pass through all these things before ventricular depolarize

• severe block: does not generate QRS, does not conduct to ventricle

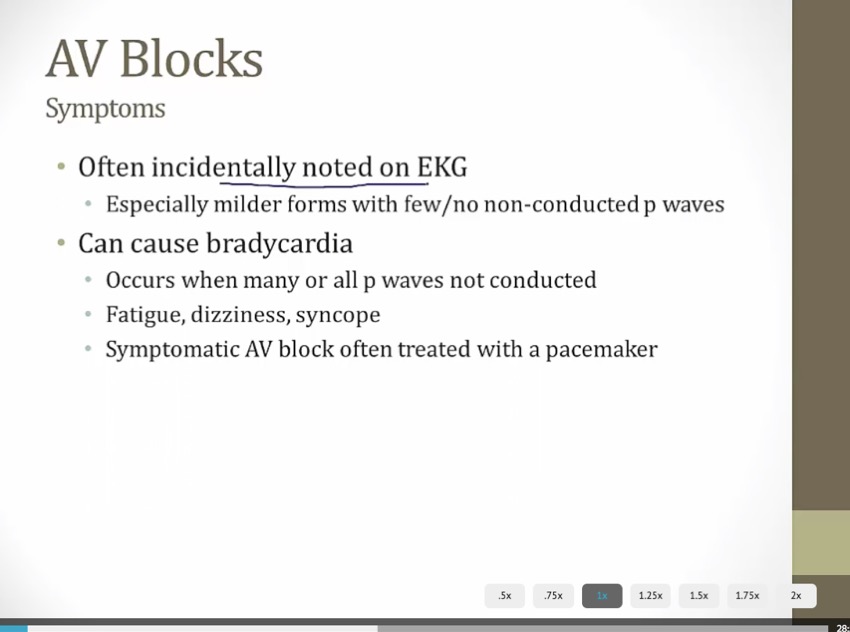

• symptoms: low CO

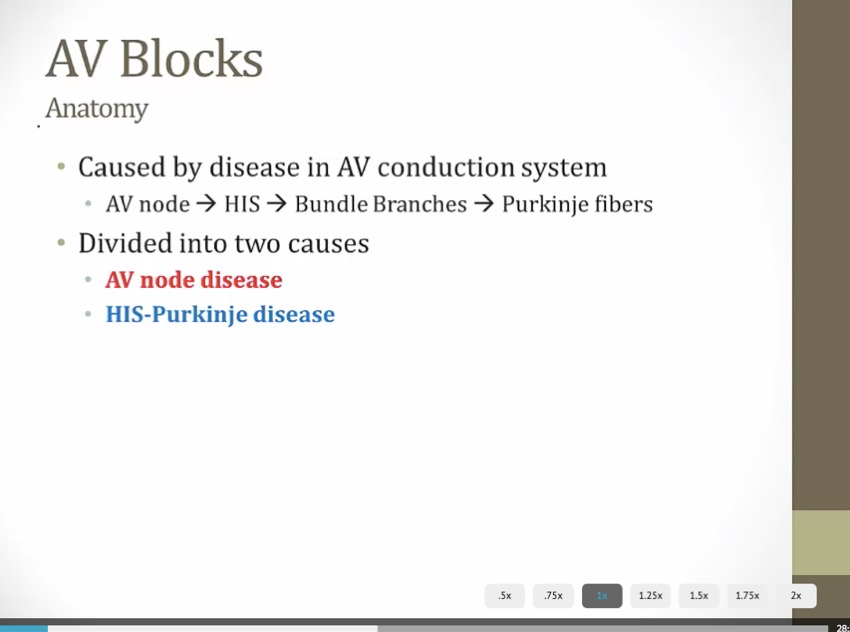

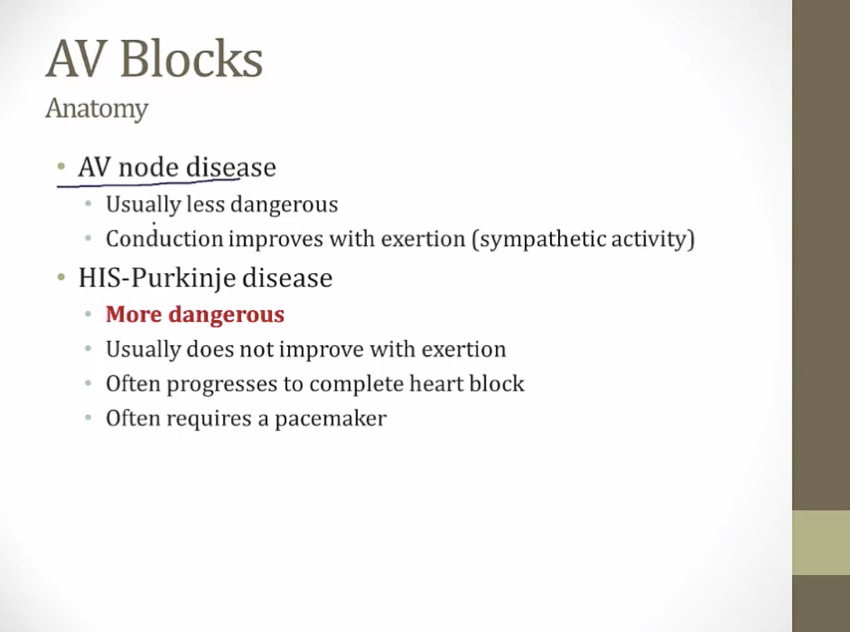

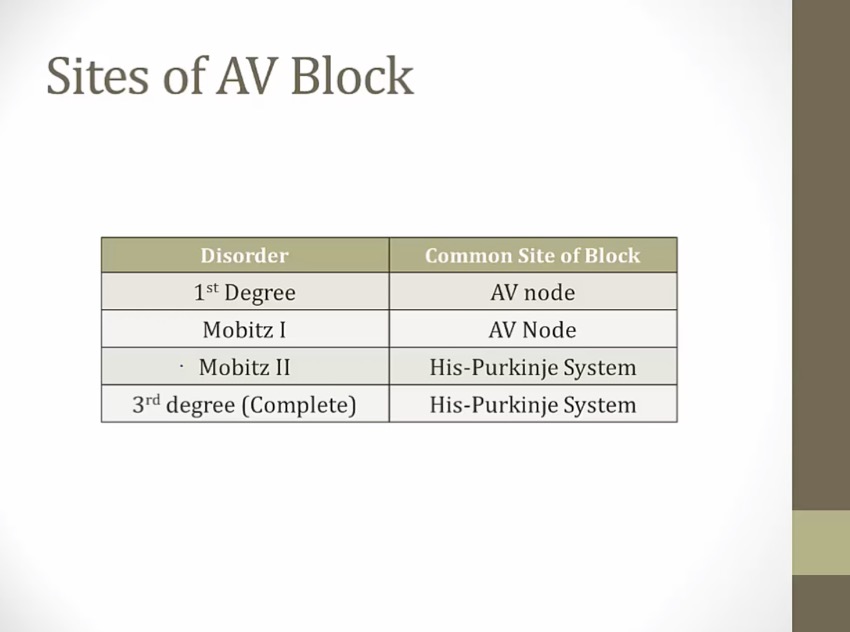

• can be caused by any portion of AV conduction system

• clinically divided into two causes

• AV node: fewer dropped beats, less bradycardia, improve with exertion (increased sympathetic activity)

_..

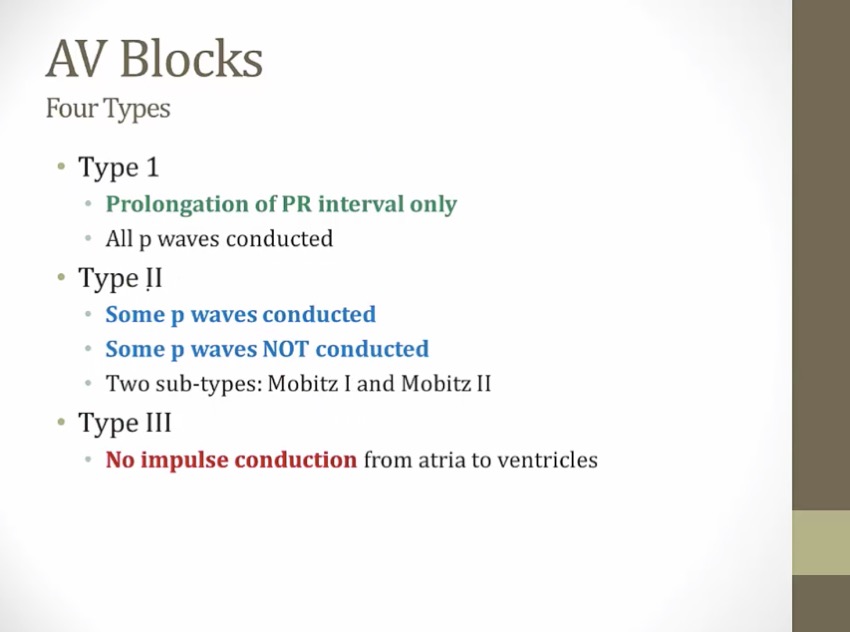

• type 1: no dropped beats

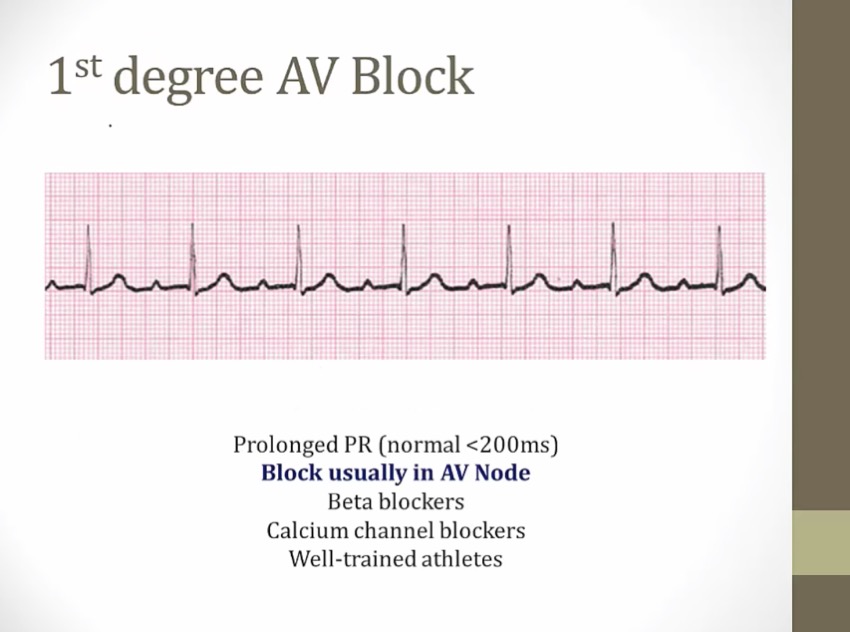

1st Degree

_..

• should be under 1 box

• all followed by QRS

• AV node: good prognosis

• atheletes: high parasympathetic tone

• no symptoms for condition. All P conducted, no bradycardia

• fibrosis: occurs with aging. Older pts have advanced types of AV block, pacemaker

2nd Degree

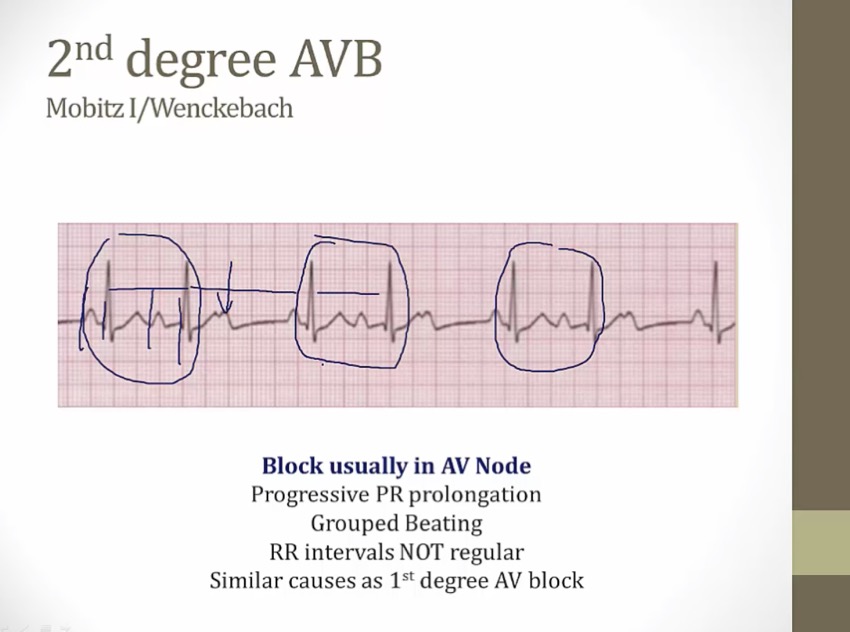

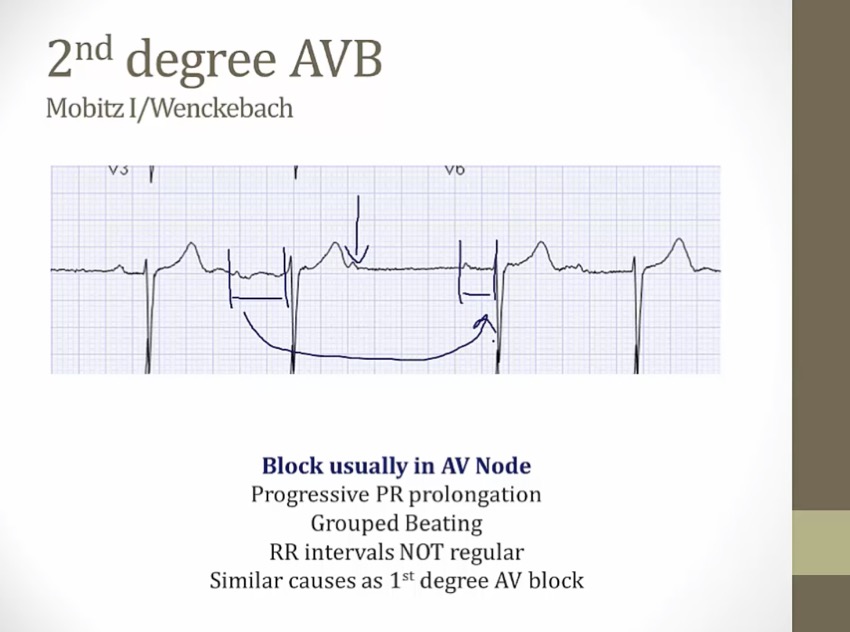

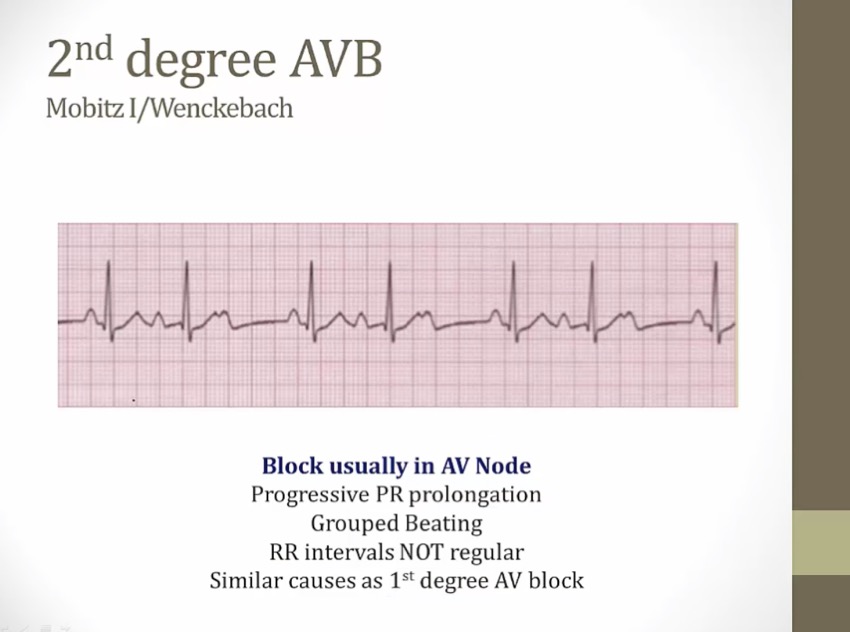

Mobitz 1

_..

• like 1st degree, but gets worse with each beat until no conduction

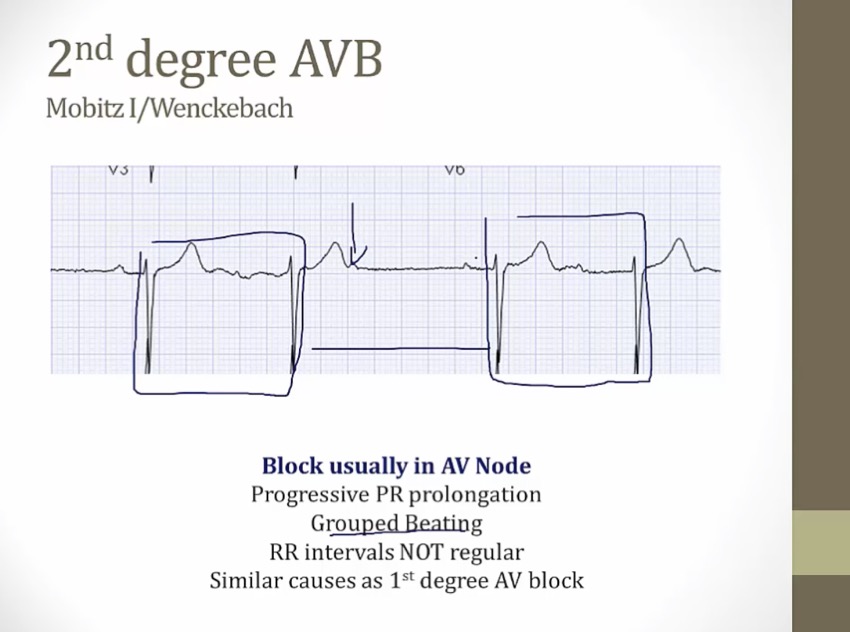

• find non-conducted P, find one before and one after, see length differences

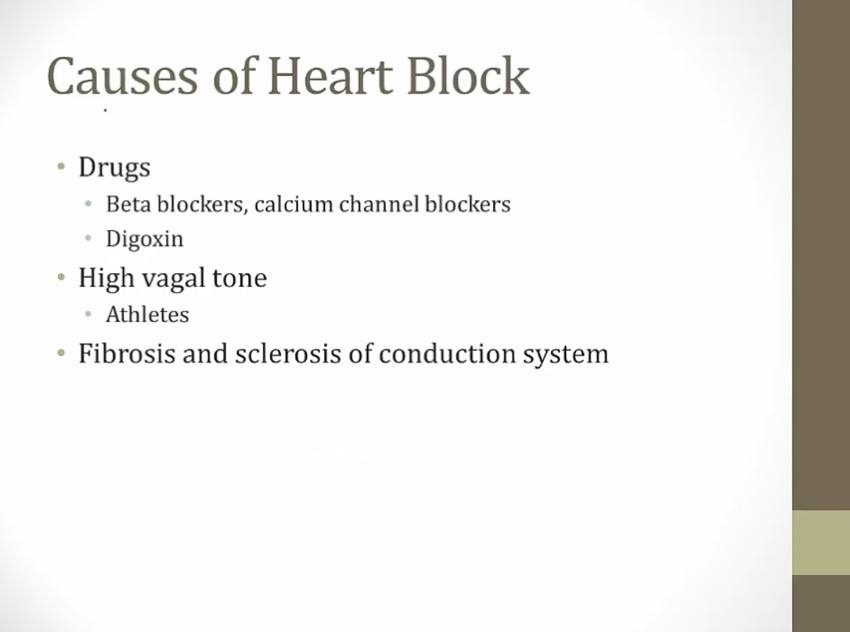

• BB, CCB, atheletes

• regularly irregular pulse, different from afib

• asymptomatic, goes away with exertion

• different lengthed PR

• grouped beating

• irregular RR interval

• fibrosis: occurs with aging. Older pts have advanced types of AV block, pacemaker

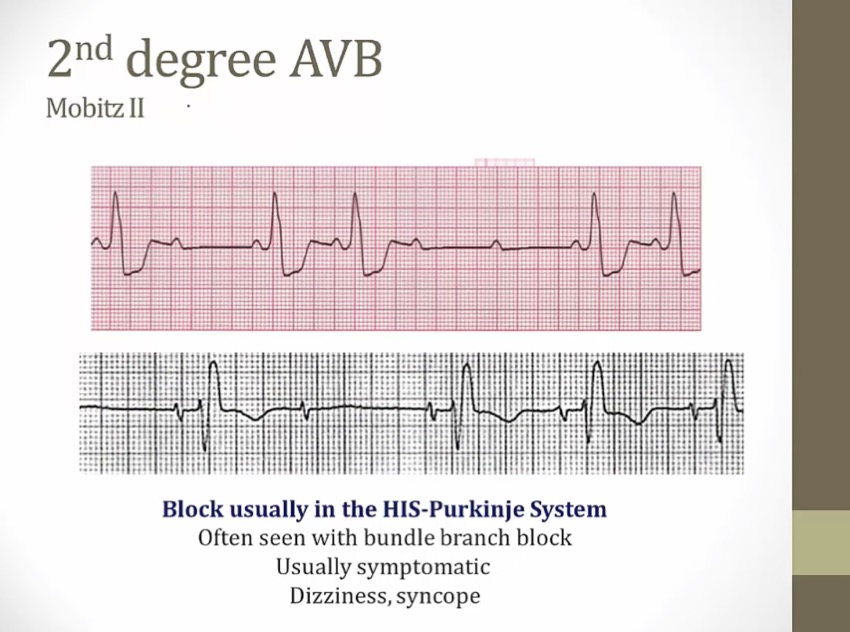

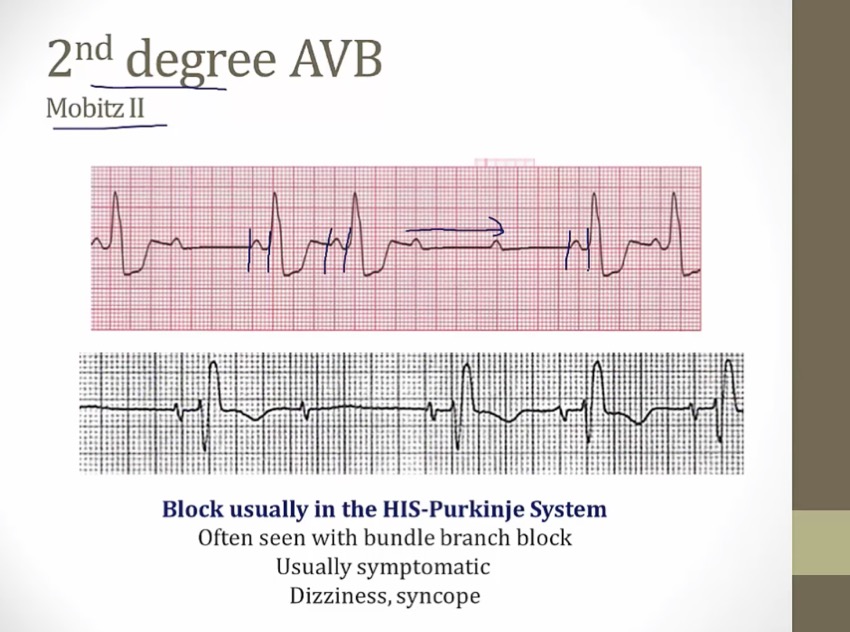

Mobitz II

_..

• no progressive prolongation: 2 conducted P, same length, then 2 non conducted P

• HIS purkinje: hanging on barely, can conduct 2, then can't conduct for next 2

• high risk to complete heart block

• often with BBB: HIS purkinje includes BB, wide QRS

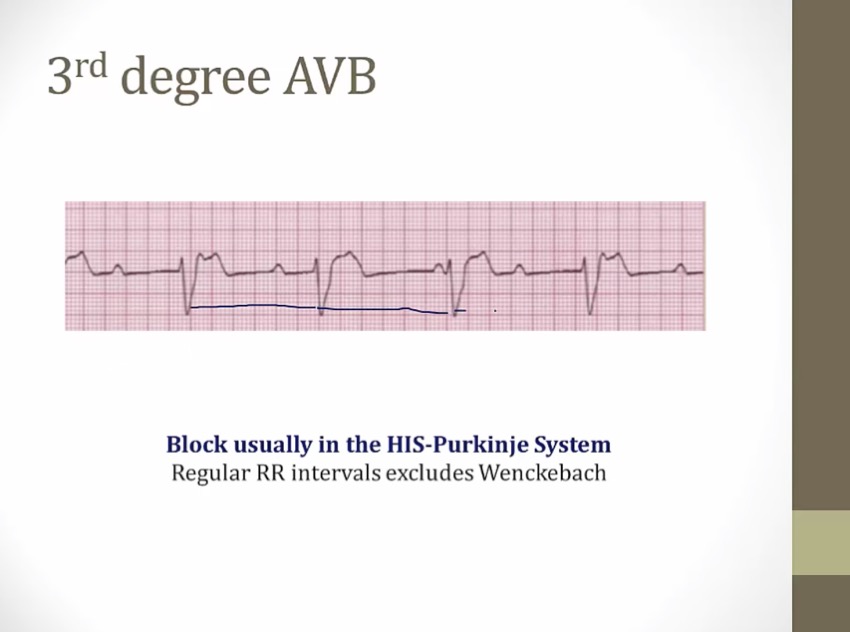

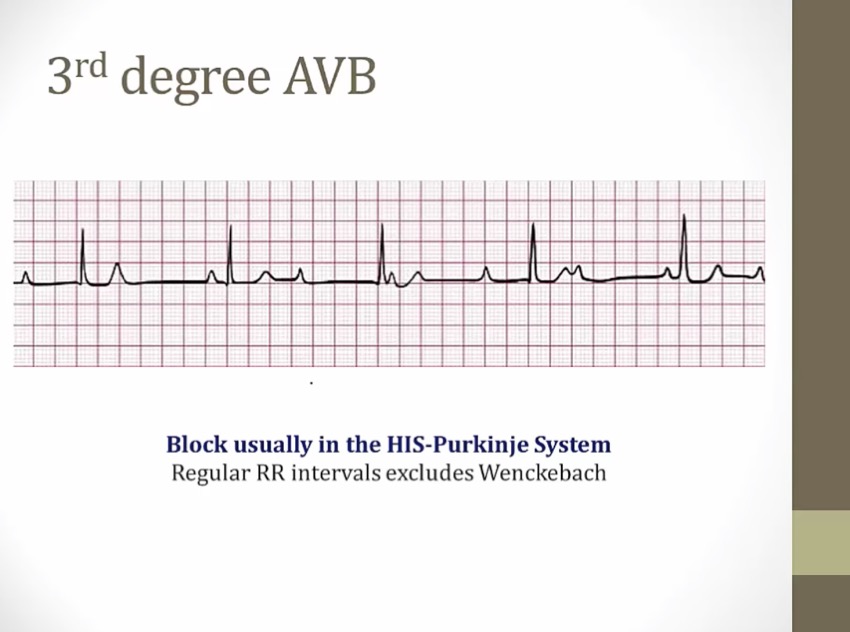

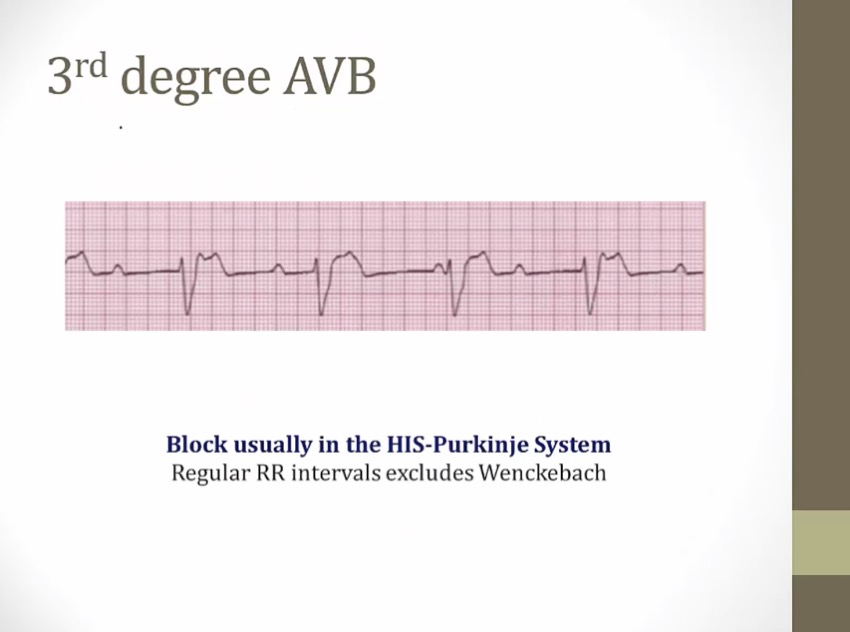

3rd Degree

_..

• no conduction from A to V

• some lower rate pacemaker in AV or V depolarizing the V at slower rate

• may look similar to Mobitz type 1, difference: RR interval completely regular

stage 2:

• heart shield: Heart block caused by Myocarditis

• bells on both side: Bilateral Bell's palsy

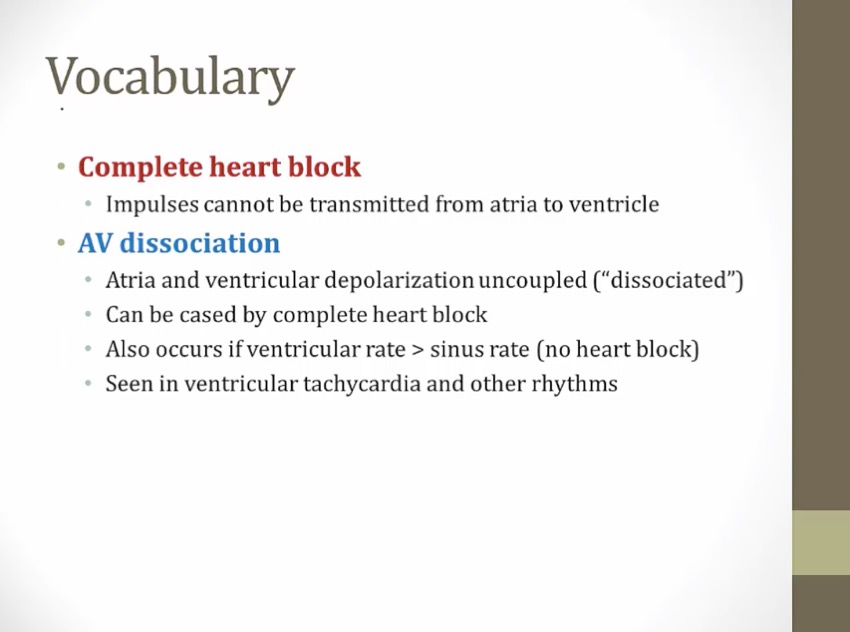

AV Dissociation

_..

• AV dissociation but still has P, not caused by AV block

_..

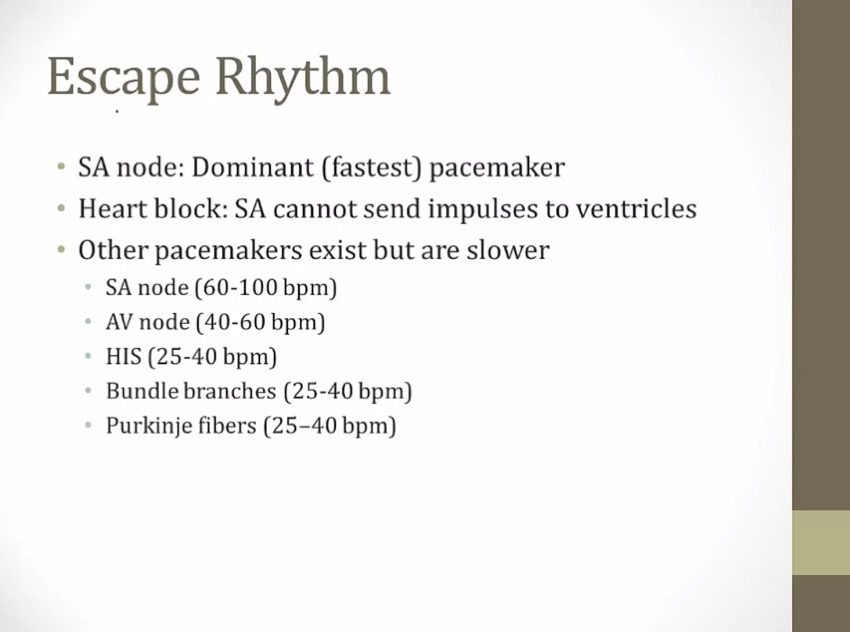

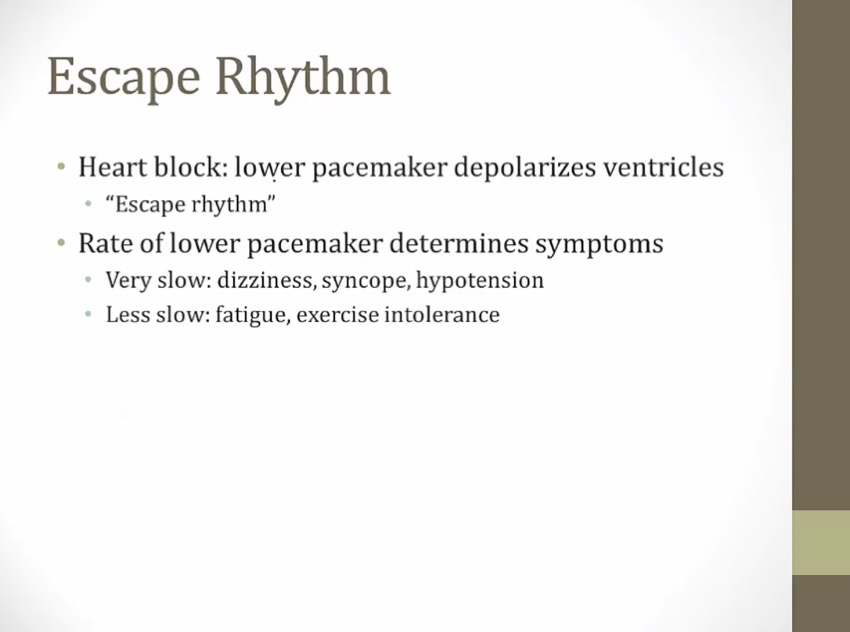

• escape rhythm generated by lower pacemaker

• lower pacemaker cannot increase rate like SA

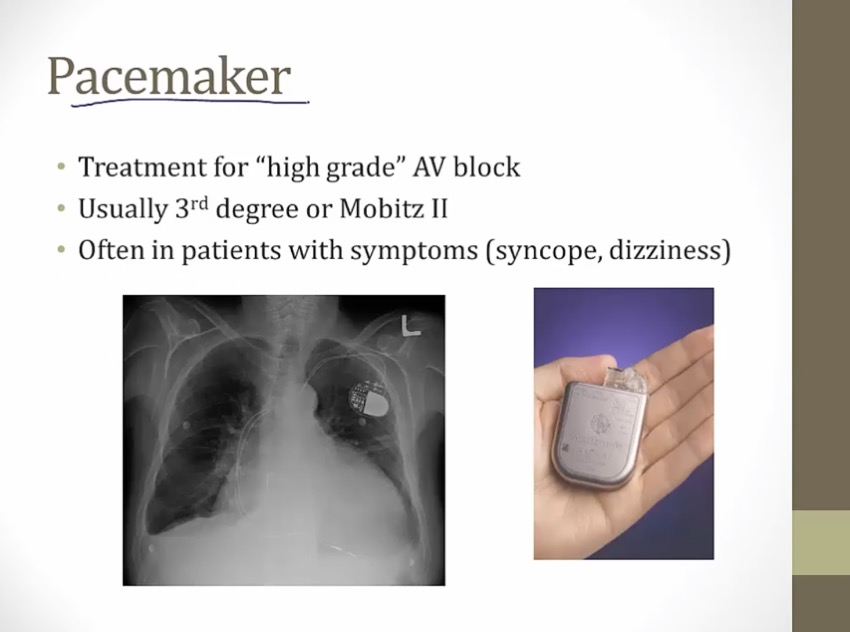

Pacemaker

_..

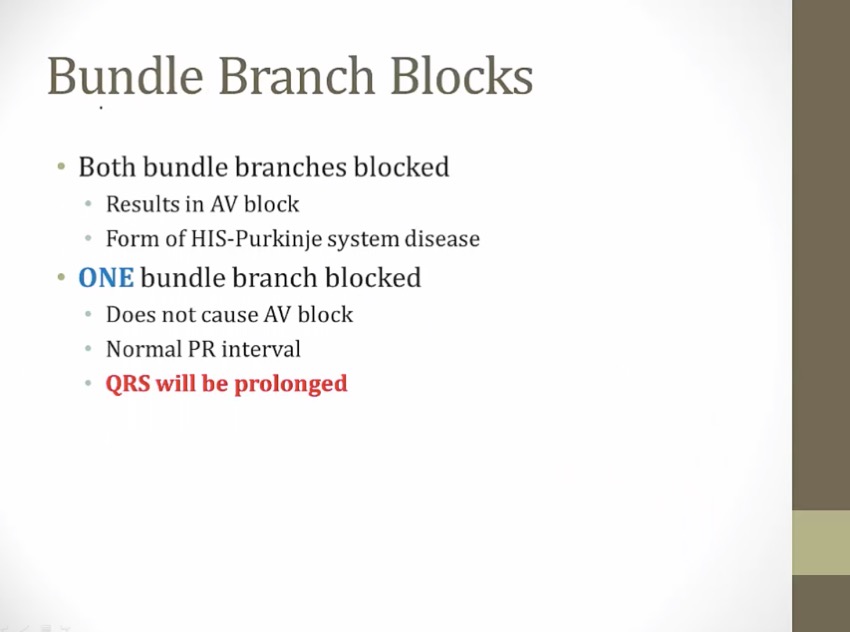

BBB

_..

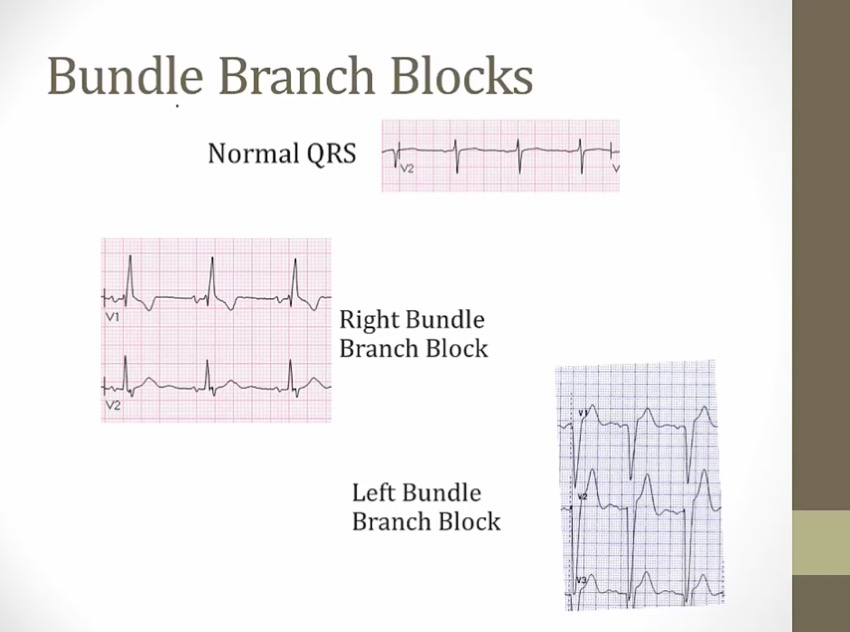

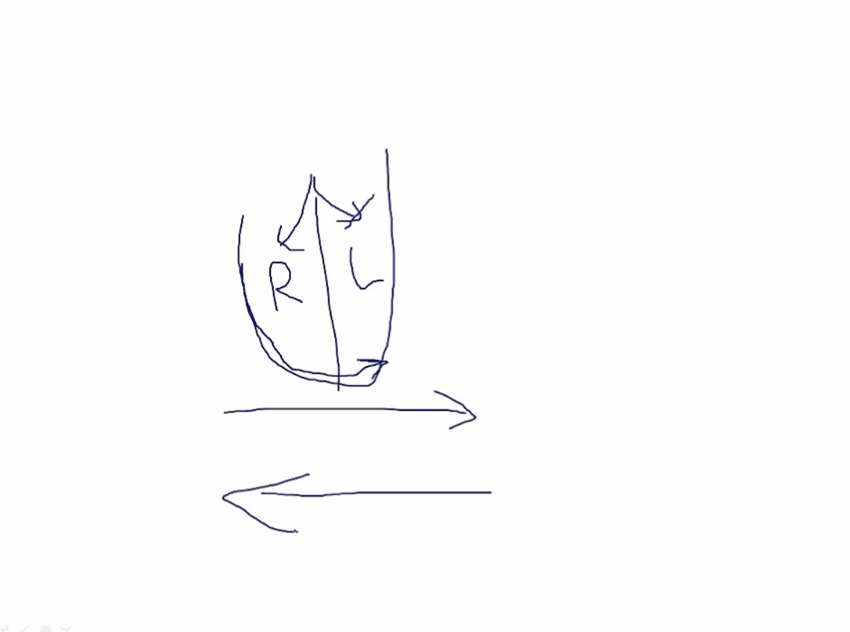

• when AP reach BB, one is not blocked, starts QRS on time (normal PR) but take longer to depolarize (wide QRS)

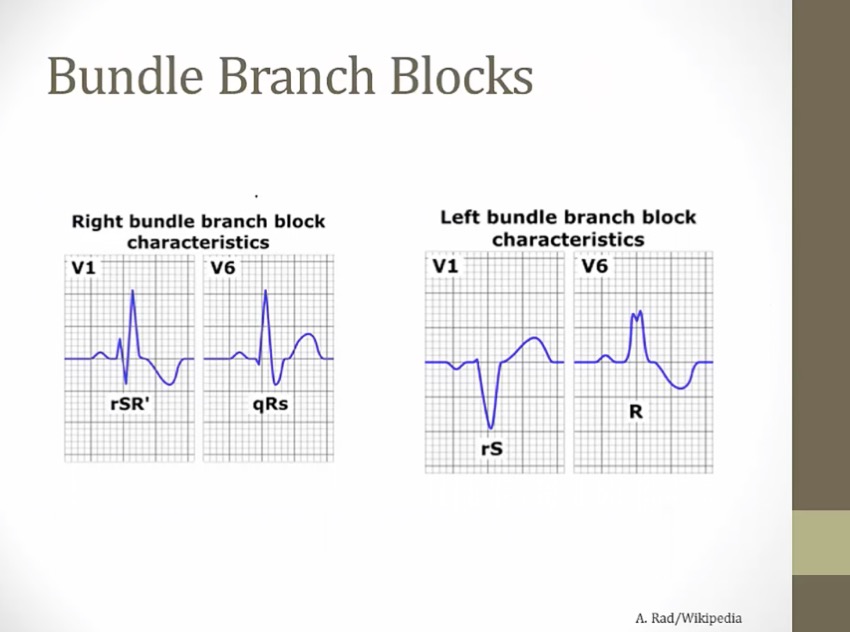

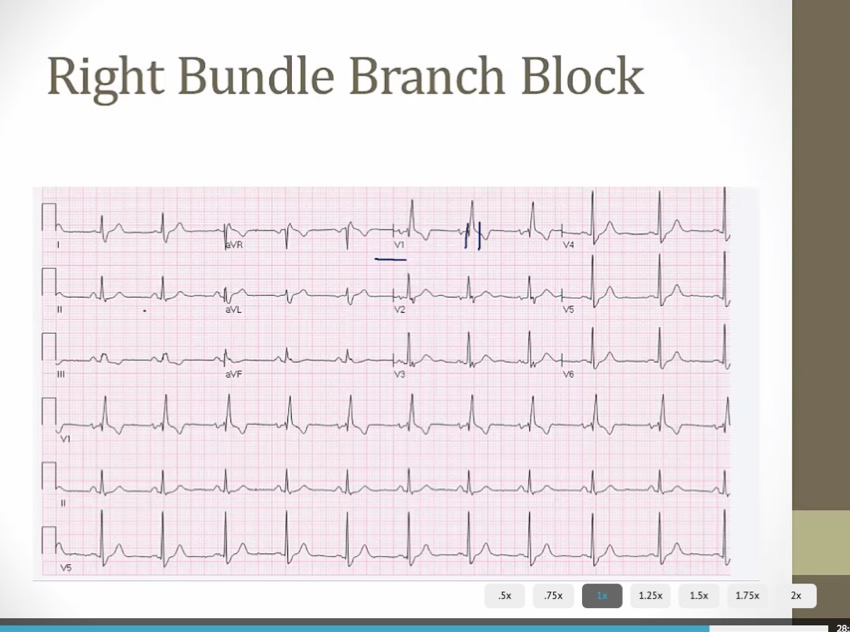

• RBBB: V1 pointing up

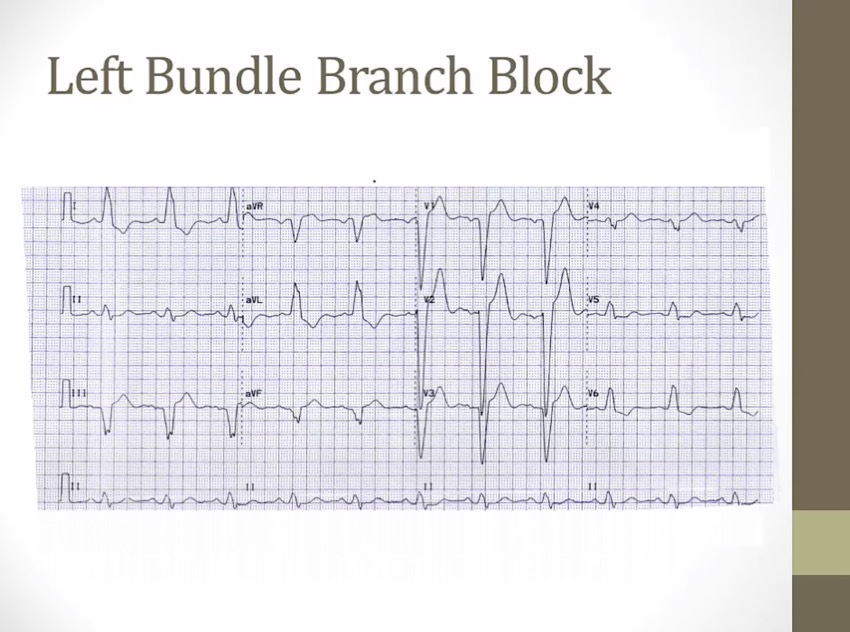

• LBBB: V1 pointing down

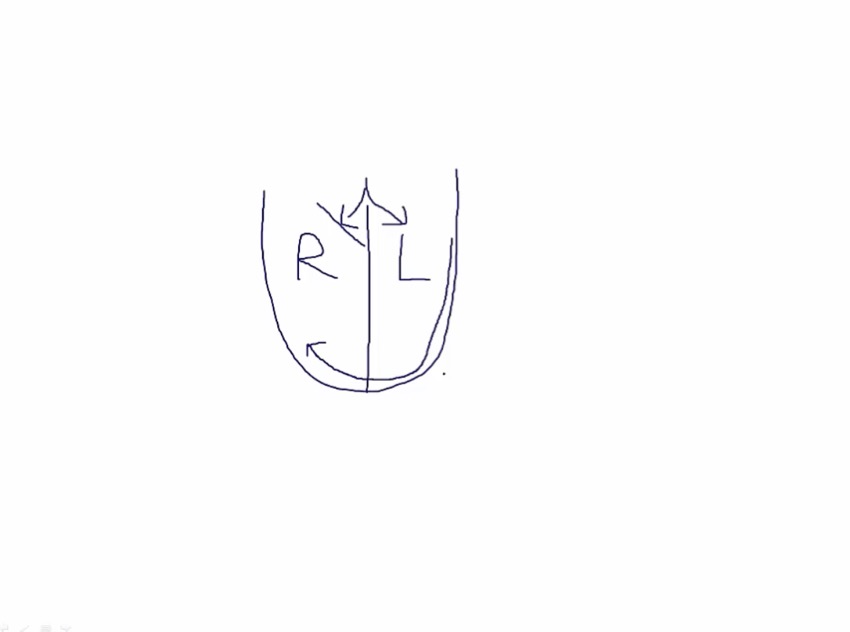

• RBBB: impulse travels to left, depolarize, then send electricity slowly to RV, takes longer, thus prolonged QRS

• LBBB: electrical activity go towards left, away from V1, negative V1

• RBBB: go towards right, towards V1, positive V1

• result: different QRS

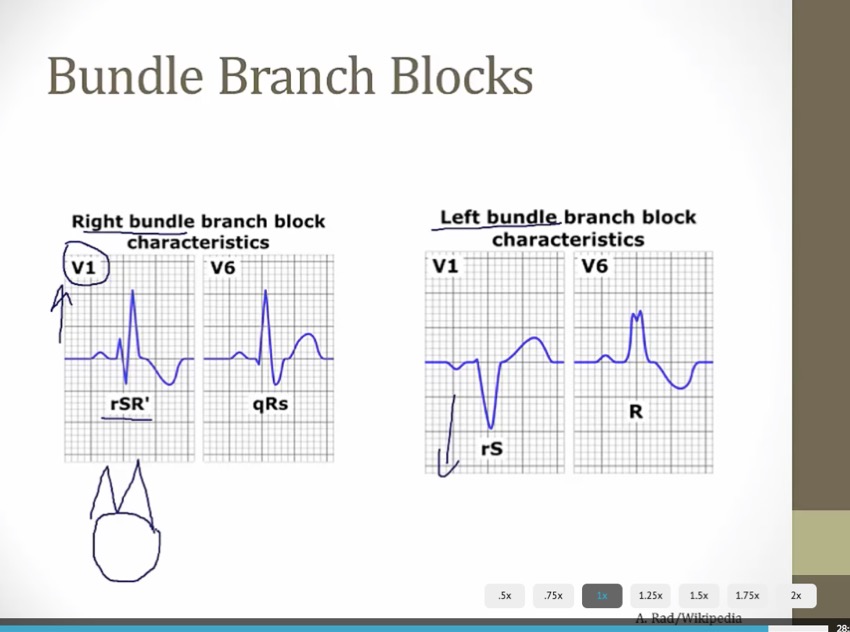

• rSR': rabbit ears

_..

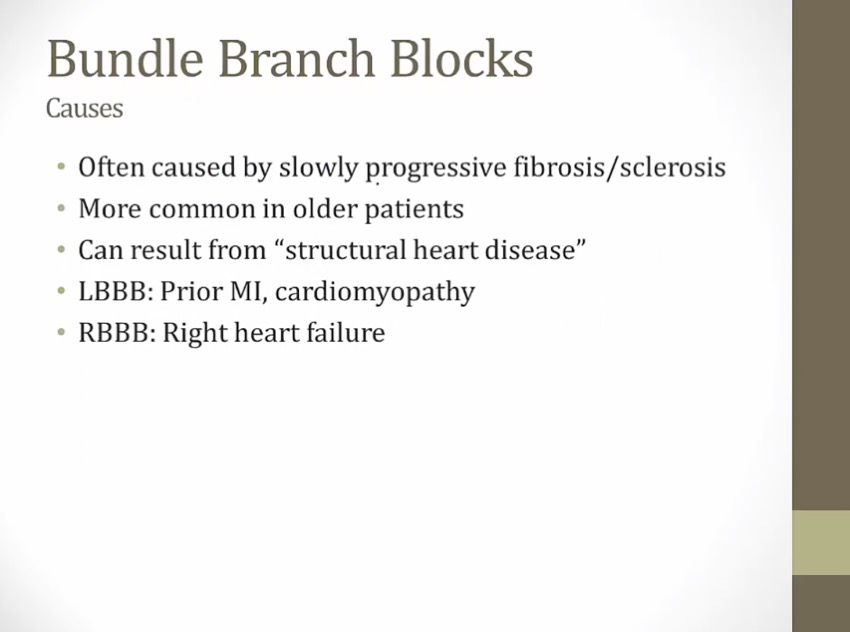

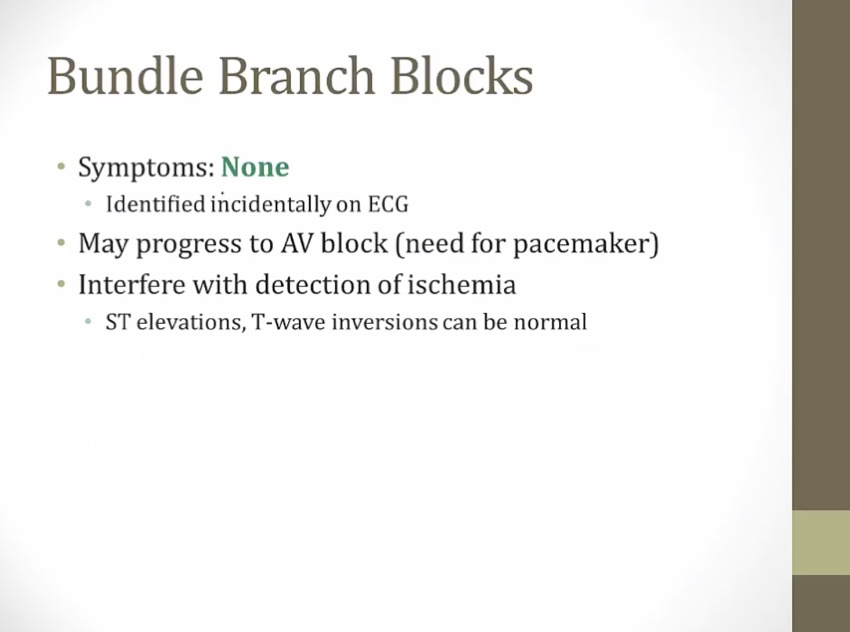

• underlying structural problems that may cause problems

• biggest problem: interfere with ischemia detection

• underlying diseases that can result in BBB
